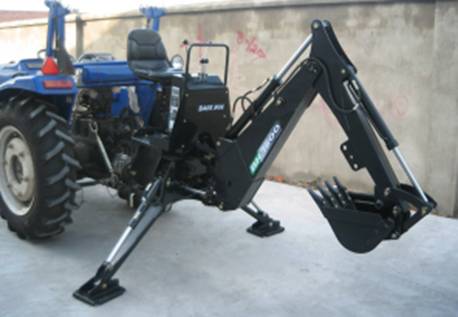

Backhoe
|
Backhoe |
||
|
Model |
BH6 |
BH7 |
|
Maximum Digging Depth |
7’0" |
8’0" |
|
Digging Depth (two foot flat bottom) |
6’6" |
7’6" |
|
Swing Arc |
180 ° |
180 ° |
|
Loading Height (bucket at 60 ° ) |
5’0" |
5’10" |
|
Reach from Center Line of Swing Pivot |
8’6" |
9’6" |
|
Transport Height (maximum) |
4’11" |
5’9" |
|
Bucket Rotation |
180 ° |
180 ° |
|
Loading Reach (bucket at 60 ° ) |
3’2" |
3’7" |
|
Transport Overhang |
3’5" |
3’6" |
|
Undercut |
2’4" |
2’6" |
|
Stabilizer Spread, down position |
6’6" |
7’5" |
|
Stabilizer Spread, up position |
3’11" |
5’1" |
|
Bucket Cylinder Digging Force |
2450 lbs |
2840 lbs |
|
Dipper stick Cylinder Digging Force |
1250 lbs |
2005 lbs |
|
Shipping Weight (less bucket) |
654 lbs |
875 lbs |
|
Hydraulic Volume Requirements |
4 to 5 GPM |
5 to 6 GPM |
|
Hydraulic Pressure Requirements |
2250 psi |
2250 psi |
|
Recommended Tractor HP Requirements |
18 - 35 HP |
|
